HPSW2

HPSW2

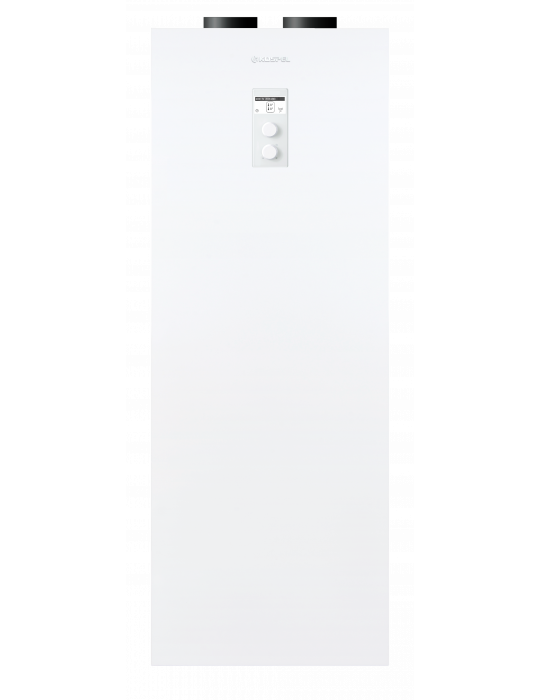

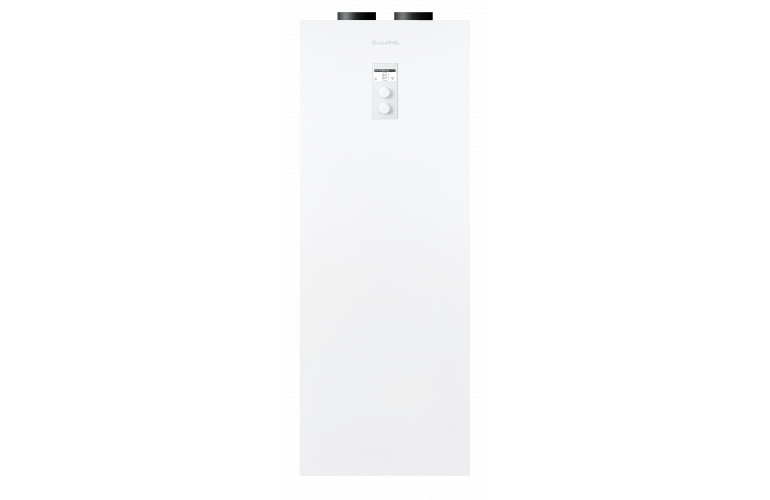

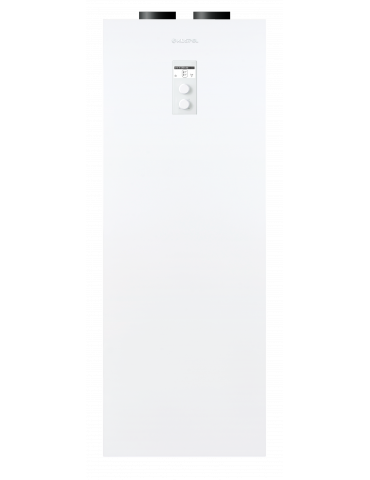

Pump with 250 l storage cylinder ideal for a household. In addition,
it allows heating water by a built-in coil or electric heater.

Kospel
Description

Energy-efficient operation

  • highest efficiency class on a scale of A+ to F

Easy installation in low rooms

  • height of only 1.7m

Quiet operation

  • compressor and fan are enclosed in a leak proof case
  • noise level has been reduced to a minimum

Microchannel condenser - an efficient and environmentally friendly solution

  • large heat exchange surface and heating water with maximum efficiency
  • requires small amounts of refrigerant, which is important for protection of the environment

Advanced control

  • water temperature and operating time programming with the control panel
  • control of the DHW circulation pump
  • conomy mode: only the compressor is activated, and if necessary, the boiler or immersion heater is activated afterwards
  • turbo mode: rapid heating of water using all heat sources

Universal installation

  • HPSW2 pump allows to change the location of the connections
  • connections can be directed to the rear or side of the unit, to the right or to the left side
Dimensions
Product code A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) dimensions (HxWxD)
HPSW2-250 125,8 229,3 332,5 831,5 932,5 1160 1669x627x670

Technical data
Product code Rated power pump/pump + immersion heater (kW) COP coefficient (in acc with PN-EN 16147) Max. power consumption pump / pump + immersion heater (kW) Anode type Capacity of hot water tank (l) Coil's heating surface area (m2)
HPSW2-250 1,6 / 3,6 4,06 (A20/W15-45)
3,63 (A20/W10-55)
3,60 (A15/W15-45)
3,22 (A15/W10-55)
0,6 / 2,6 AMW.M8.450 250 1,2
