HPS.Z - Split HP

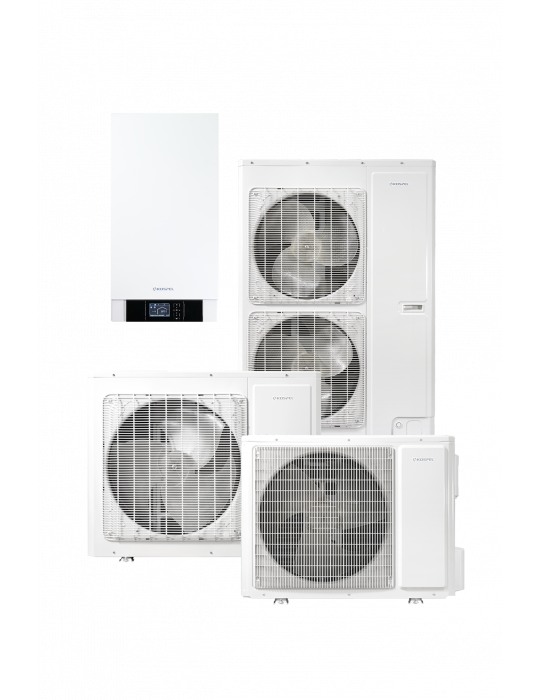

Air Water HPS.Z Heat Pump SPLIT - t’s an efficient set consisting of an HPSI indoor unit and an HPSO outdoor unit

  • the evaporator of the outdoor unit extracts heat from the environment
  • the compressor increases the temperature of the refrigerant and transfers it as overheated steam to the indoor unit
  • condensation takes place in the indoor unit, and the heat is transferred to the heating system
  • the cooled refrigerant returns to the outdoor unit, where it passes through the expansion valve and goes back to the evaporator
Description

Heat pump HPS.Z Element of sets

  • Indoor unit HPSI-06 + Outdoor unit HPSO-6 = HPS.Z-6
  • Indoor unit HPSI-06 + Outdoor unit HPSO-8 = HPS.Z-8
  • Indoor unit HPSI-09 + Outdoor unit HPSO-12 = HPS.Z-12
  • Indoor unit HPSI-09 + Outdoor unit  HPSO-16 = HPS.Z-16

Suggested devices in the heating system

Indoor unit HPS

INDOOR UNIT ELEMENTS

In the HPSI unit, the heat obtained from the outdoor unit is transferred to the heating system via the condenser.

  • The indoor unit has a three-way valve that switches the device to central heating or DHW heating
  • The high-quality secondary circuit pump allows the heat to be transferred efficiently to the heating system
  • HPSI-06 – co-operate with HPSO-06/230 and HPSO-08/230 HPSI-09 – co-operate with HPSO-12/400 and HPSO-16/400

CONTROL PANEL SERVICE

The user can set the pump operation mode according to its preferences. "Operation mode” – enables and disables installation functions:

  • central heating + DHW heating
  • central heating
  • DHW heating
  • with several heating circuits – a seperate heating program for each circuit

Operation modes:

  • “Party” – independent program time for room heating / cooling
  • “Economic exploitation” – the room temperature is lowered irrespective of the „time program” (the mode can only be set in the heating program „Heating and DHW” or „Heating”)
  • “Holiday” – long term energy-saving program and is valid for all heating / cooling circuit
Outdoor unit HPSO-6
  • Rated power: 6kW (A7/W35)
  • Refrigerant: R32
  • Energy class:
    • temp 55o - A++
    • temp: 35o - A+++
  • COP EN 14511 - 4,90 (A7/W35)
  • Invertible function - Thanks to the reversible function, the HPS.Z heat pump reverses the compressor discharge direction. Thereby it is changed from a heating device to a cooling device
Outdoor unit HPSO-8
  • Rated power: 8kW (A7/W35)
  • Refrigerant: R32
  • Energy class:
    • temp 55o - A++
    • temp: 35o - A+++
  • COP EN 14511 - 4,90 (A7/W35)
  • Invertible function - Thanks to the reversible function, the HPS.Z heat pump reverses the compressor discharge direction. Thereby it is changed from a heating device to a cooling device
Outdoor unit HPSO-12, HPSO-16
  • Rated power: 12kW / 16kW (A7/W35)
  • Refrigerant: R410A
  • Energy class:
    • temp 55o - A+
    • temp: 35o - A++
  • COP EN 14511 - 4,45 (12kW)/4,37(16kW) (A7/W35)
  • Invertible function - Thanks to the reversible function, the HPS.Z heat pump reverses the compressor discharge direction. Thereby it is changed from a heating device to a cooling device
Technical data
Set’s codeHPS.Z-06/230
HPSO-6+HPSI-06
HPS.Z-08/230
HPSO-8+HPSI-06
HPS.Z-12/400
HPSO-12+HPSI-09
HPS.Z-16/400
HPSO-16+HPSI-09
Rated power (kW)

4 (A2/W35)

6 (A7/W35)

4 (A2/W35)

8 (A7/W35)

7 (A2/W35)

12 (A7/W35)

9 (A2/W35)

16 (A7/W35

COP coefficient

3,51 (A2/W35)

4,9 (A7/W35)

3,6 (A2/W35)

4,66 (A7/W35)

3,31 (A2/W35)

4,45 (A7/W35)

3,32 (A2/W35)

4,37 (A7/W35)

EER efficiency degree in cooling system

3,51 (A2/W35)

5,23 (A7/W35)

3,2 (A2/W35)

4,7 (A7/W35)

3,31 (A2/W35)

4,45 (A7/W35)

3,2 (A2/W35)

4,7 (A7/W35)

Max. outdoor sound power level (dB) 62 64 64 64
Max. heating medium temperature (oC) 55 55 55 55
Voltage (V) 230 230 400 ~ 400 ~
Internal module dimensions (D/S/W) (mm) 370 / 450 / 880
External module dimensions (D/S/W) (mm) 344 / 975 / 702 360 / 980 / 790 342 / 900 / 134
Immersion heaters powers available (power switchable) (kW) 3 / 6 kW 6 / 9 kW

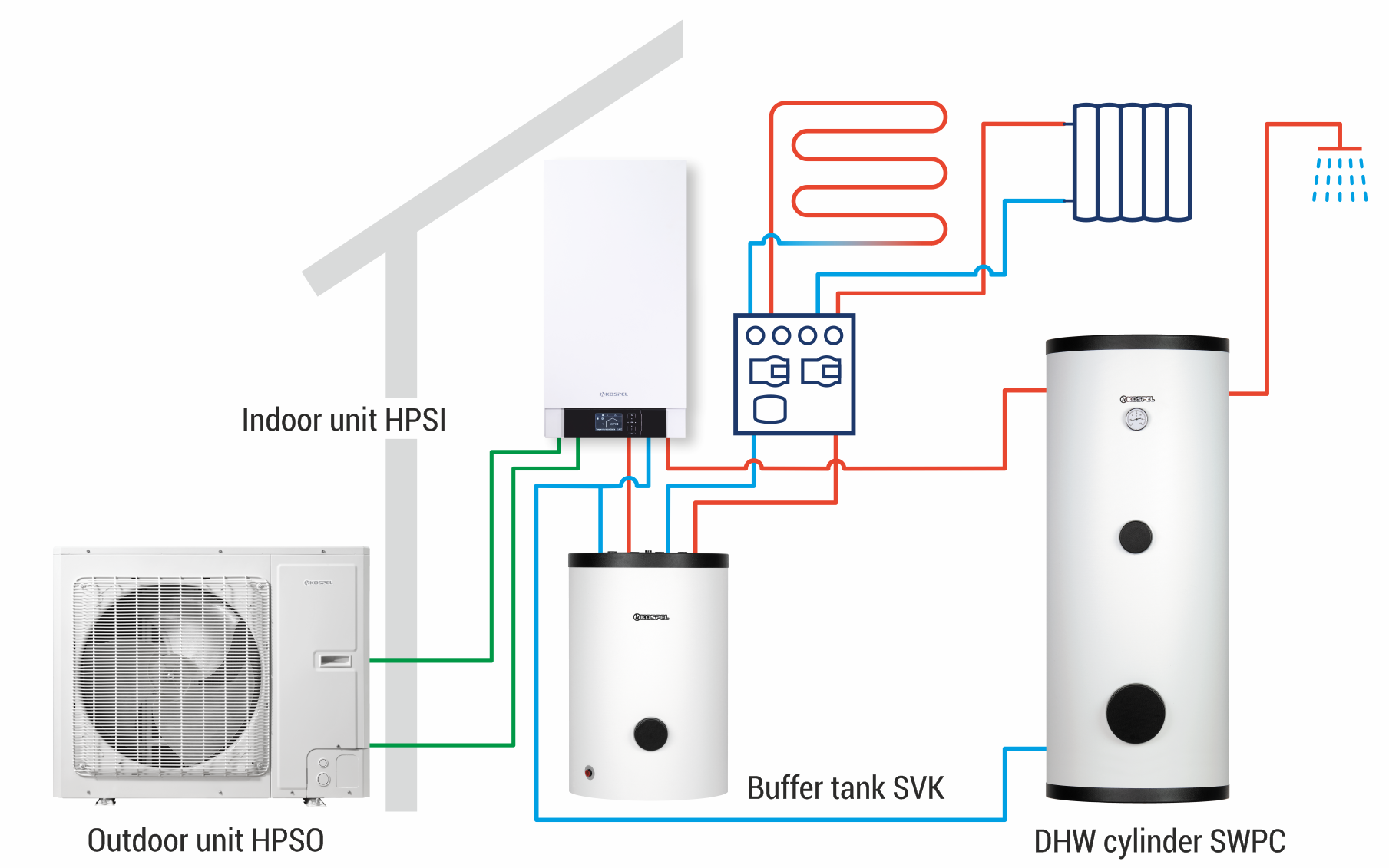

Overwiev diagram - system instalation with HPS.Z pump
